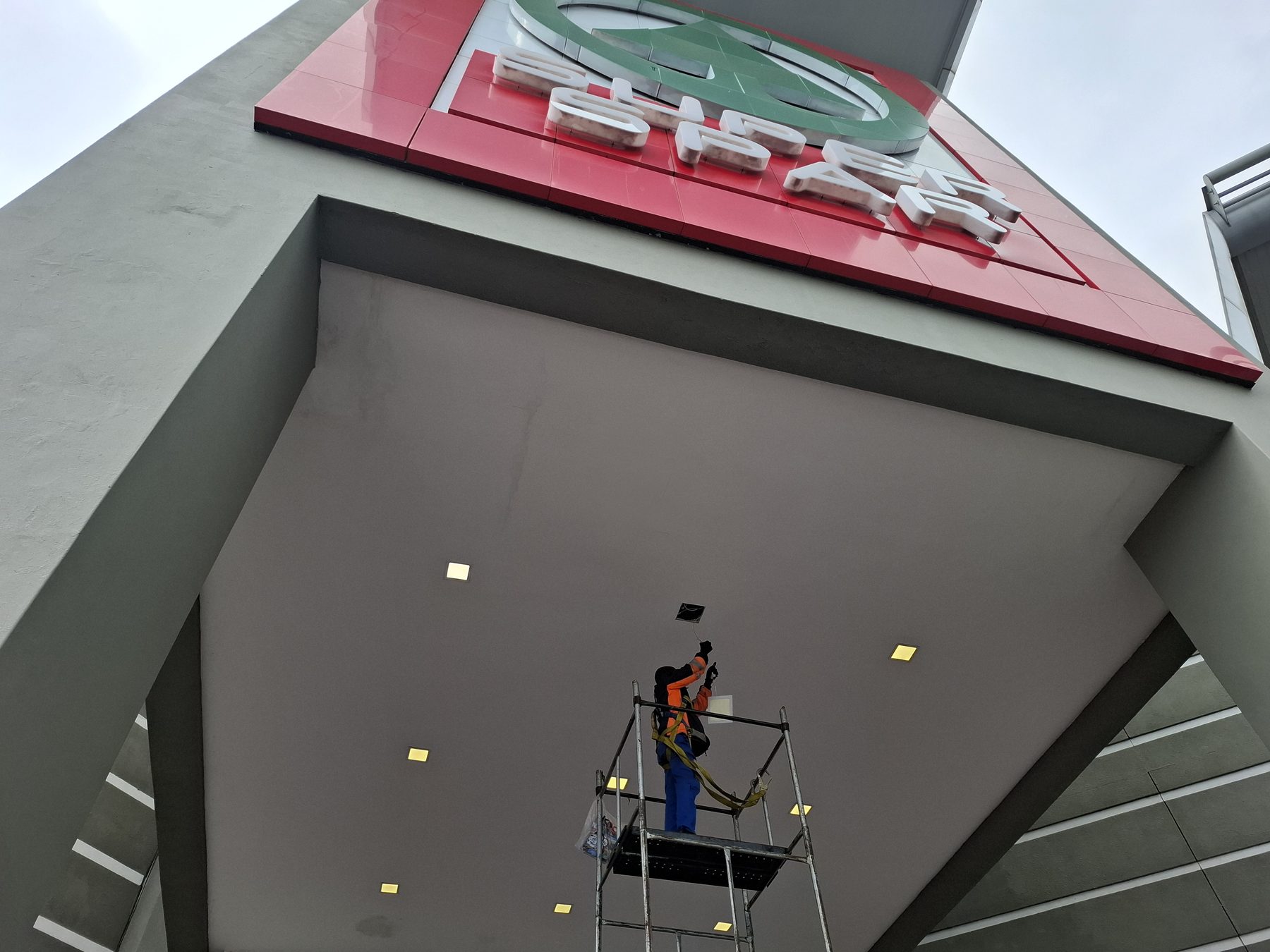

Working at height under a shopping centre canopy
← All insights
Commercial Maintenance

Canopy Light Repairs:
When Height is Half the Battle

Iron Leaf Electric May 2026 5-min read

We were called in to replace two faulty LED downlights under the entrance canopy of a local shopping centre. Sounds straightforward enough — until you look up. The canopy ceiling sits several metres off the ground, which means before our team could touch a single fitting, scaffolding towers had to be erected on site. But the lights were only part of the story. A faulty timer in the distribution board had also been preventing the circuit from operating correctly — and that needed to be sorted out first.

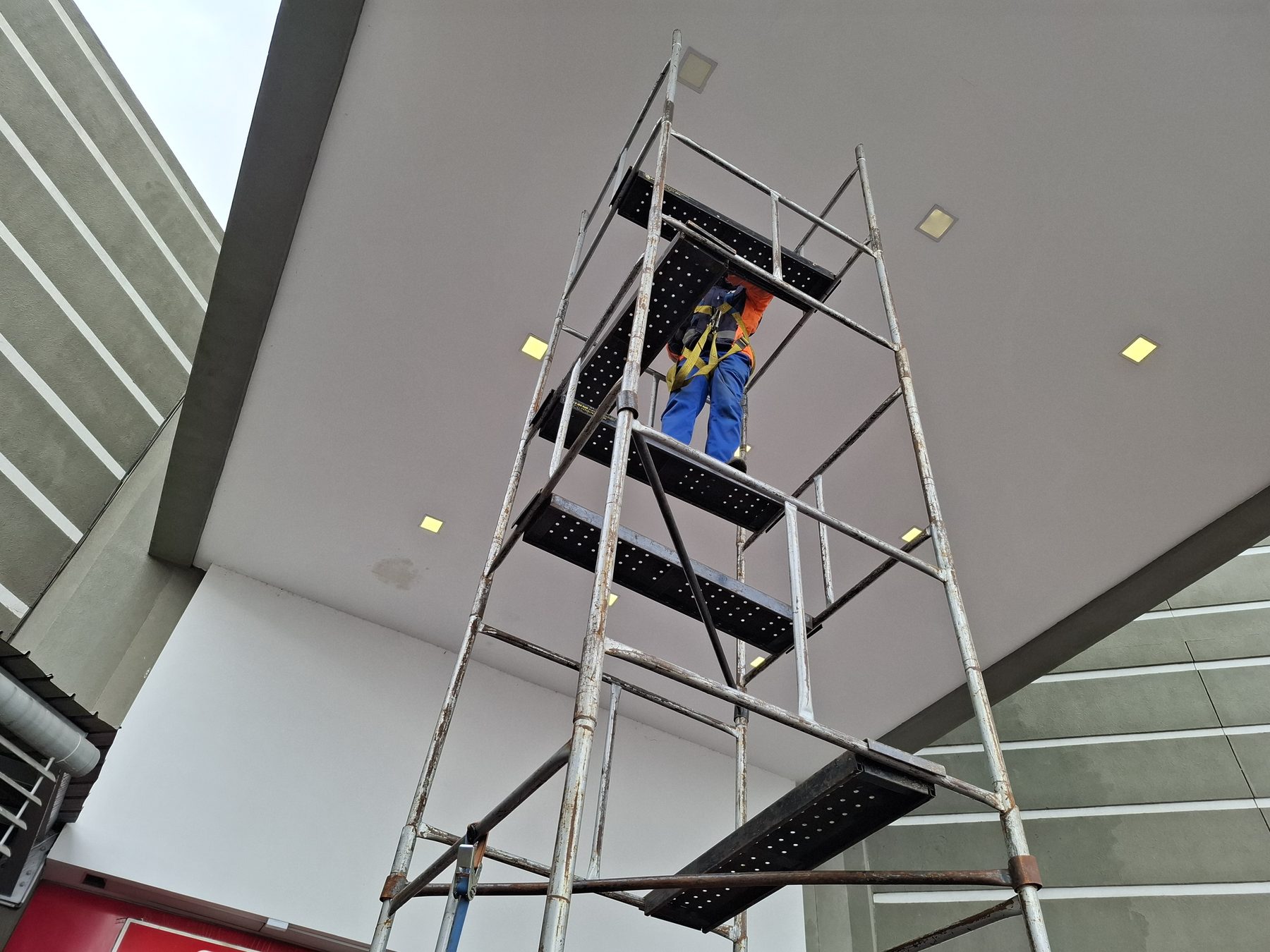

Full scaffolding tower erected under canopy

Multi-level scaffolding erected to reach the high canopy ceiling safely.

Safe access before anything else.

Heights work requires the right equipment and the right approach — full stop. Before any electrical work could begin, a scaffolding tower was assembled on site. All team members working at height were equipped with safety harnesses and followed the necessary fall-protection protocols throughout the job.

This type of access adds time and cost to a job, but it is non-negotiable. A solid, stable platform at height is the foundation of safe and quality work — not an optional extra.

The scaffolding was dismantled and removed on completion, with the area left clear and unobstructed for the shopping centre and its customers.

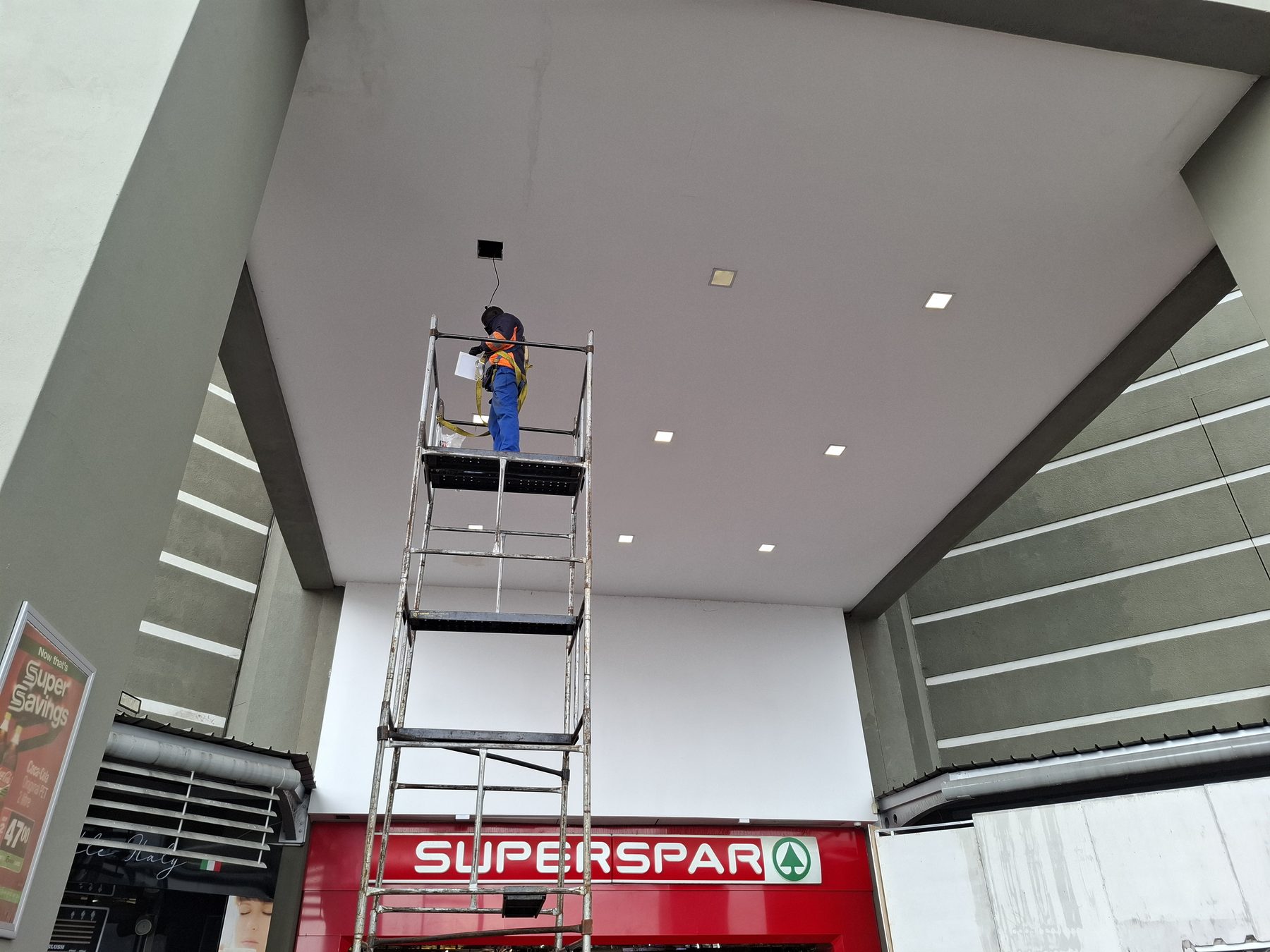

Scaffolding against the full canopy facade The canopy at work — scaffolding positioned and technician on site.

Why do LED lights fail?

Two of the fittings had given up — one was completely dead, and the other had been flickering. Both are common LED failure modes, and both point to the same root cause: a failing LED driver.

Dead LEDs — The driver is the internal power supply that converts mains voltage into a stable direct current for the LEDs. Over time, heat cycling, voltage spikes, and ageing capacitors inside the driver cause it to fail entirely. When the driver goes, the light goes with it.

Flickering LEDs — Flickering is a driver fault in progress. A deteriorating driver struggles to maintain stable current delivery, causing the light output to fluctuate. Loose connections or an unstable supply can also contribute. Left unattended, a flickering LED will fail completely — replace it before it becomes a safety or security issue.

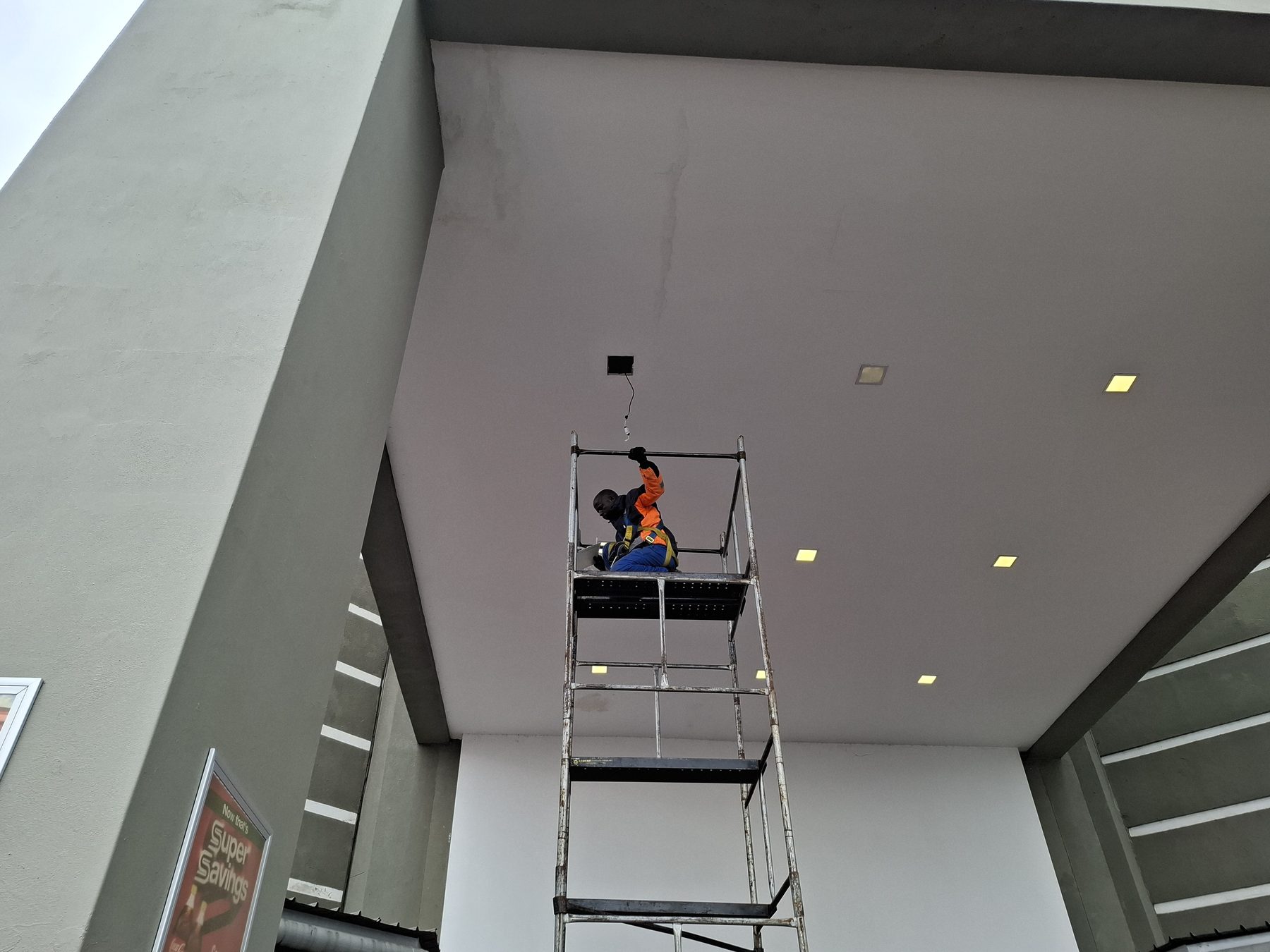

Open ceiling aperture with wiring exposed after removing the failed fitting

The open aperture after removing the failed fitting — driver failure confirmed on inspection.

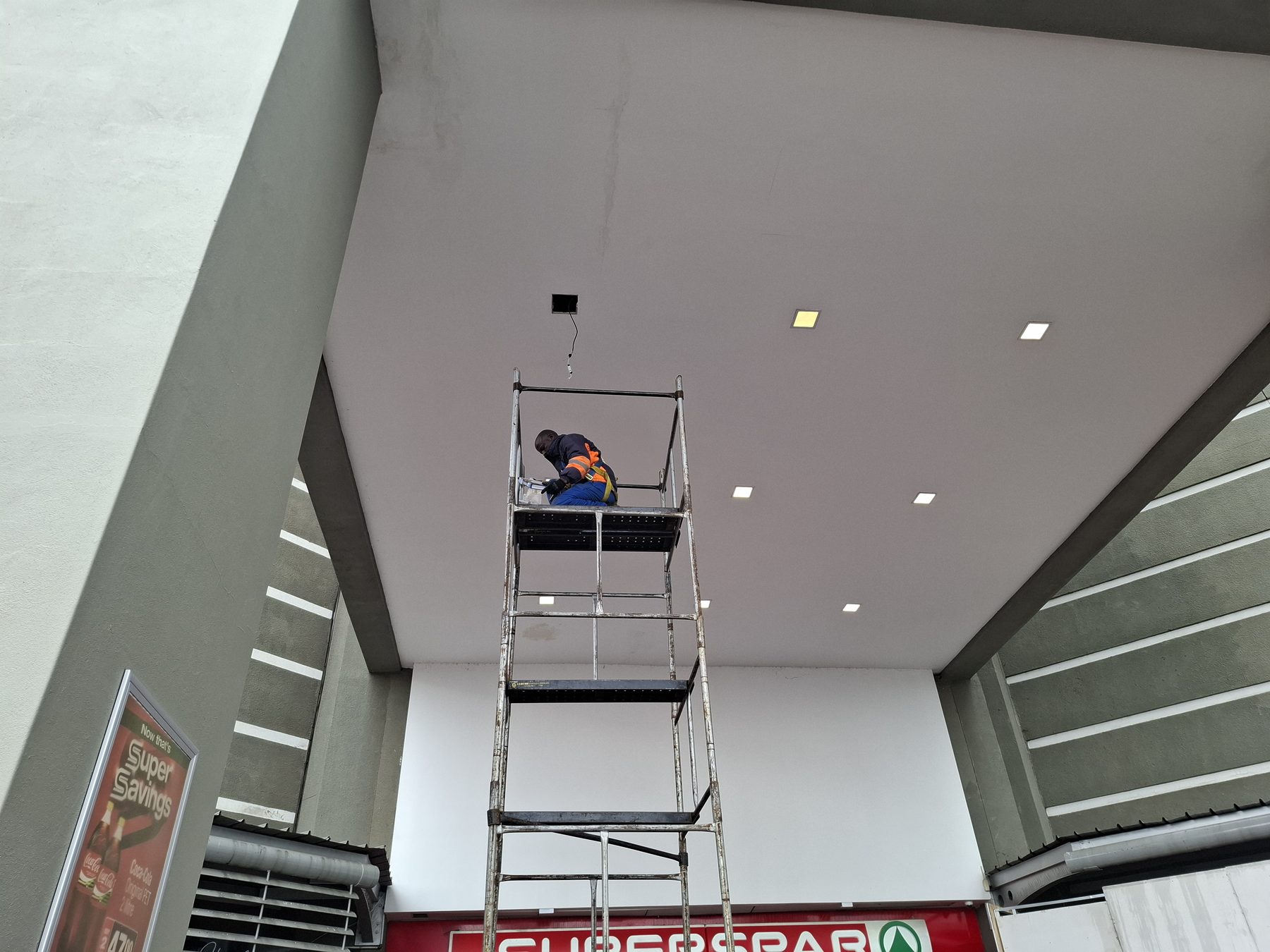

Technician on scaffolding with open ceiling aperture visible

First fitting removed — the open aperture clearly visible in the ceiling above.

Out with the old.

The original fittings were an obsolete model — no longer manufactured or stocked locally. Removing them from the high ceiling required precision: the scaffold platform needed to be correctly positioned for each fitting, and each fitting removed and lowered carefully.

With the apertures open and the supply cables identified and safely isolated at the distribution board, the installation of the replacement fittings could begin.


The replacement fitting.

The original fittings were obsolete, but fortunately the available replacement matched the same form factor and cut-out dimensions — allowing a like-for-like swap without any ceiling modifications.

The replacement is an ACDC Dynamics RW-SQ220-18W-CCT LED Downlight — an ultra-thin, surface-recessed panel downlight rated at 18W and producing 1 620 lumens.

Its standout feature is the 3CCT adjustable colour temperature, which allows the installer to select between warm white, cool white, and daylight modes. This proved particularly useful in matching the new fittings as closely as possible to the existing units in the canopy.

A note on product selection

This fitting is not what we would typically specify for a commercial canopy installation. Our standard recommendation leans towards a more robust, commercial-grade luminaire. However, with the original model discontinued and an exact form-factor replacement required, this was the most suitable available option that fitted the existing aperture.

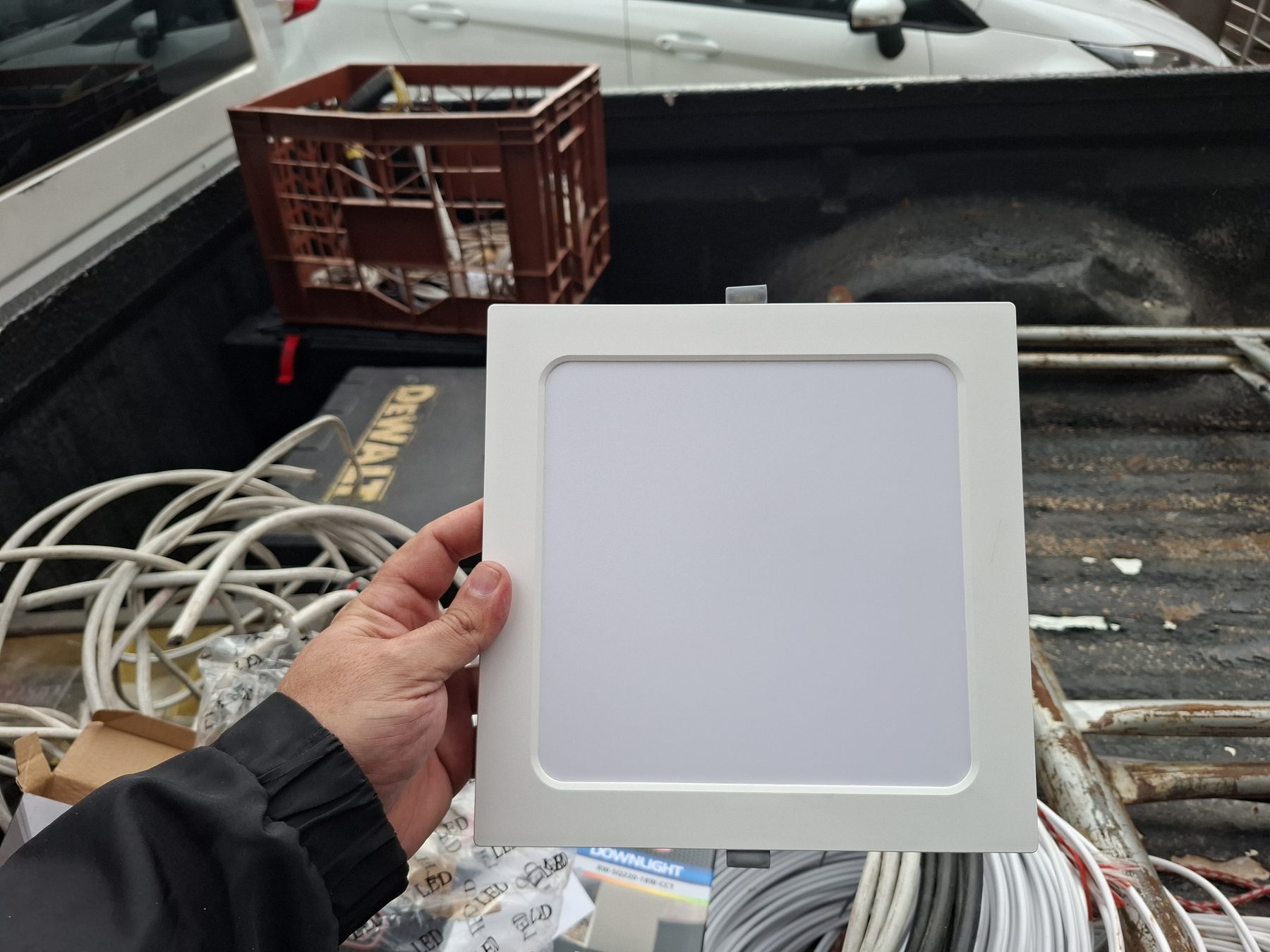

ACDC Dynamics RW-SQ220-18W-CCT LED downlight fitting

The ACDC Dynamics RW-SQ220-18W-CCT — same size, same profile, updated technology.

Product Specification

ModelRW-SQ220-18W-CCT
BrandACDC Dynamics
Wattage18W
Output1 620 Lumens
Colour Temp3CCT — 2700K / 4000K / 6000K
Supply230VAC
RatingIP20 | Ultra Thin
DimmingNon-dimmable
SavingUp to 80% vs halogen
The CCT selector allows colour temperature to be set on installation — useful for matching new fittings to existing ones in the same ceiling section.

The faulty timer — and why it mattered.

Before the new fittings could be commissioned, there was another fault to address: the lighting circuit timer in the main distribution board had failed. The timer — a DIN-rail mounted digital programmable unit controlling the canopy lighting circuit — had stopped switching the lights on and off at the correct times.

A faulty timer on a retail canopy is more than an inconvenience. It can mean lights that never come on after dark, or lights that run continuously and unnecessarily through the day. Both scenarios waste money and affect the appearance of the property. The timer was replaced with a new Major MTDB 24-hour digital programmable timer, wired in and programmed before the circuit was returned to service.

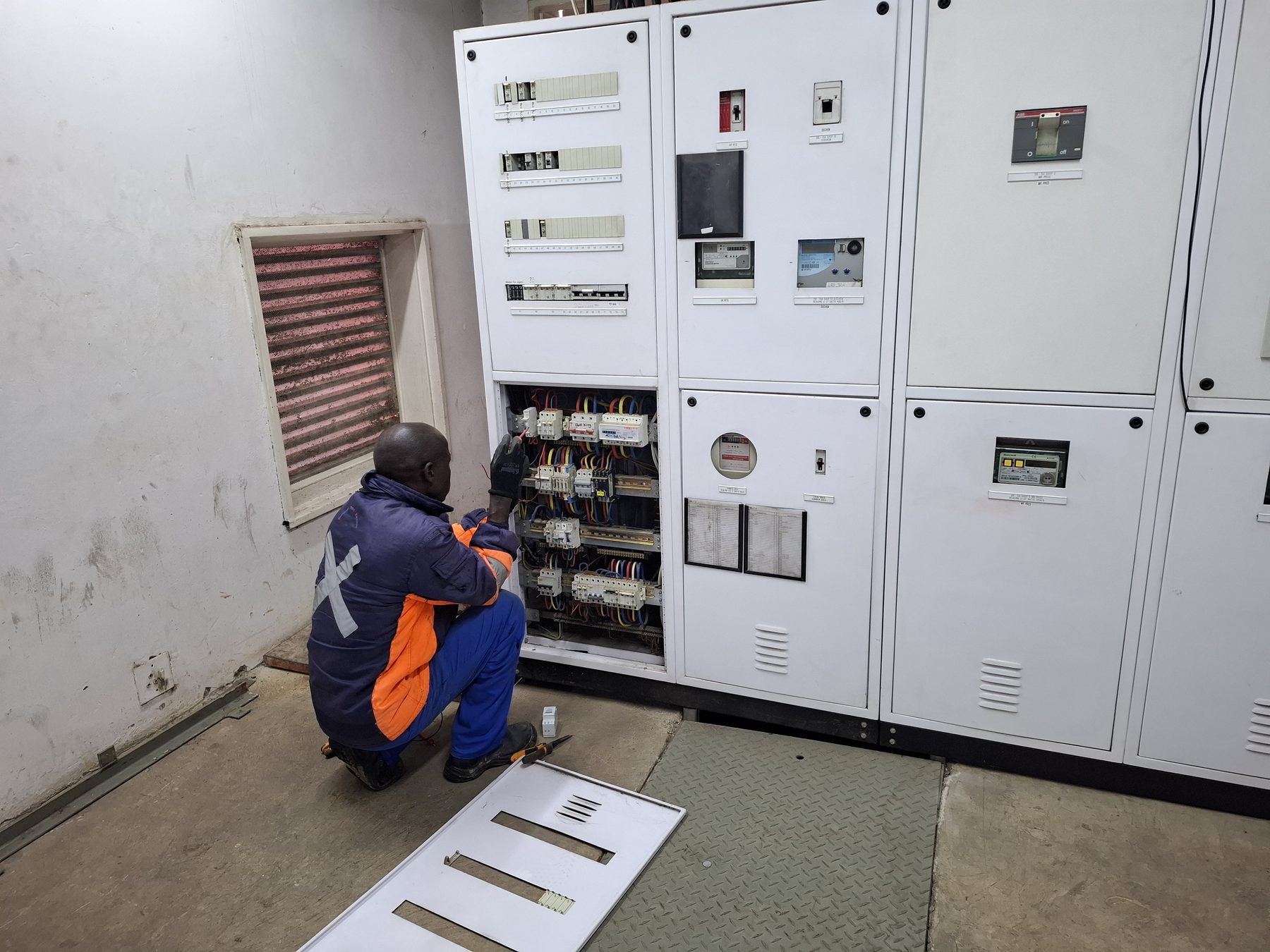

Main distribution board room at the shopping centre

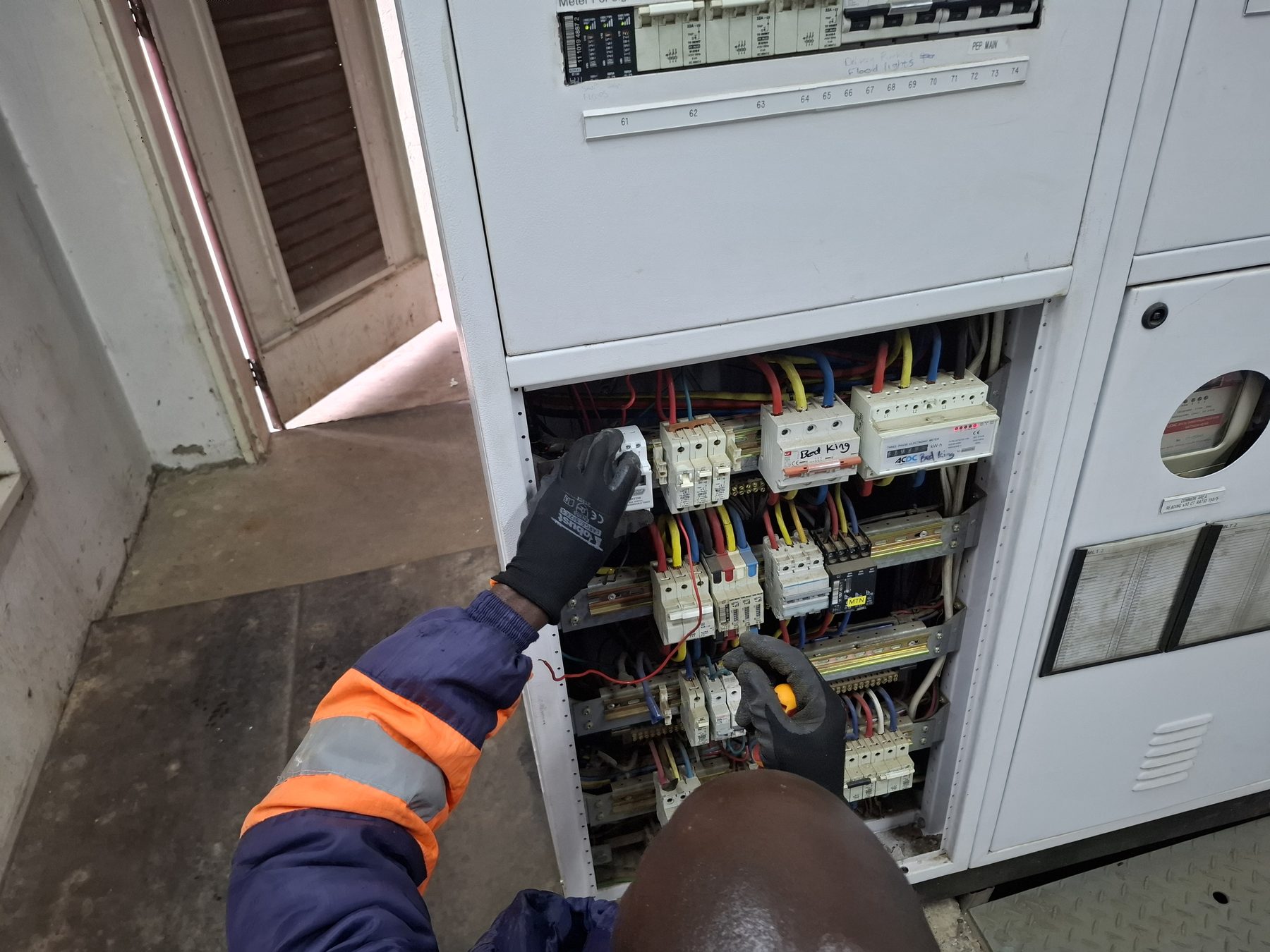

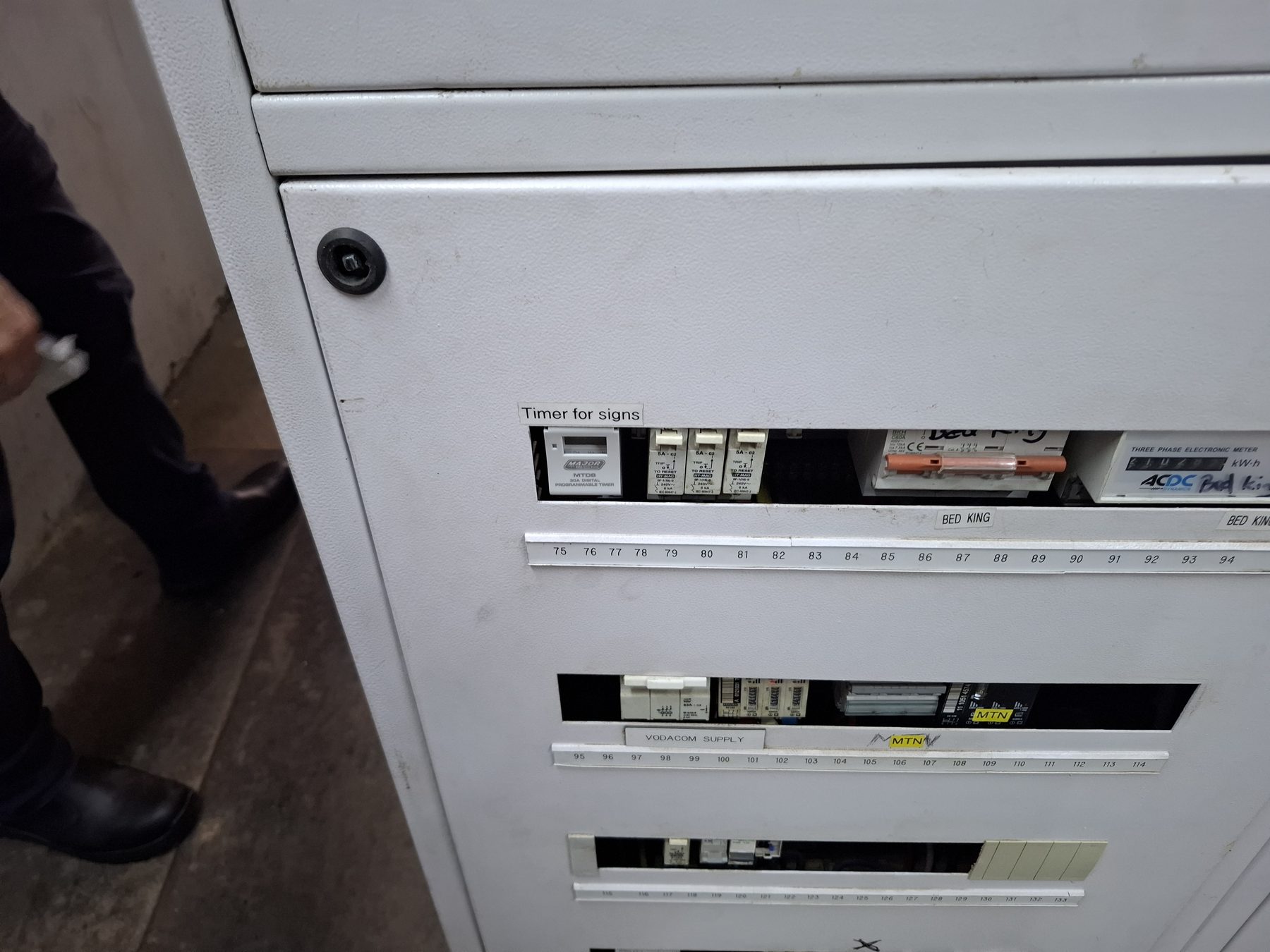

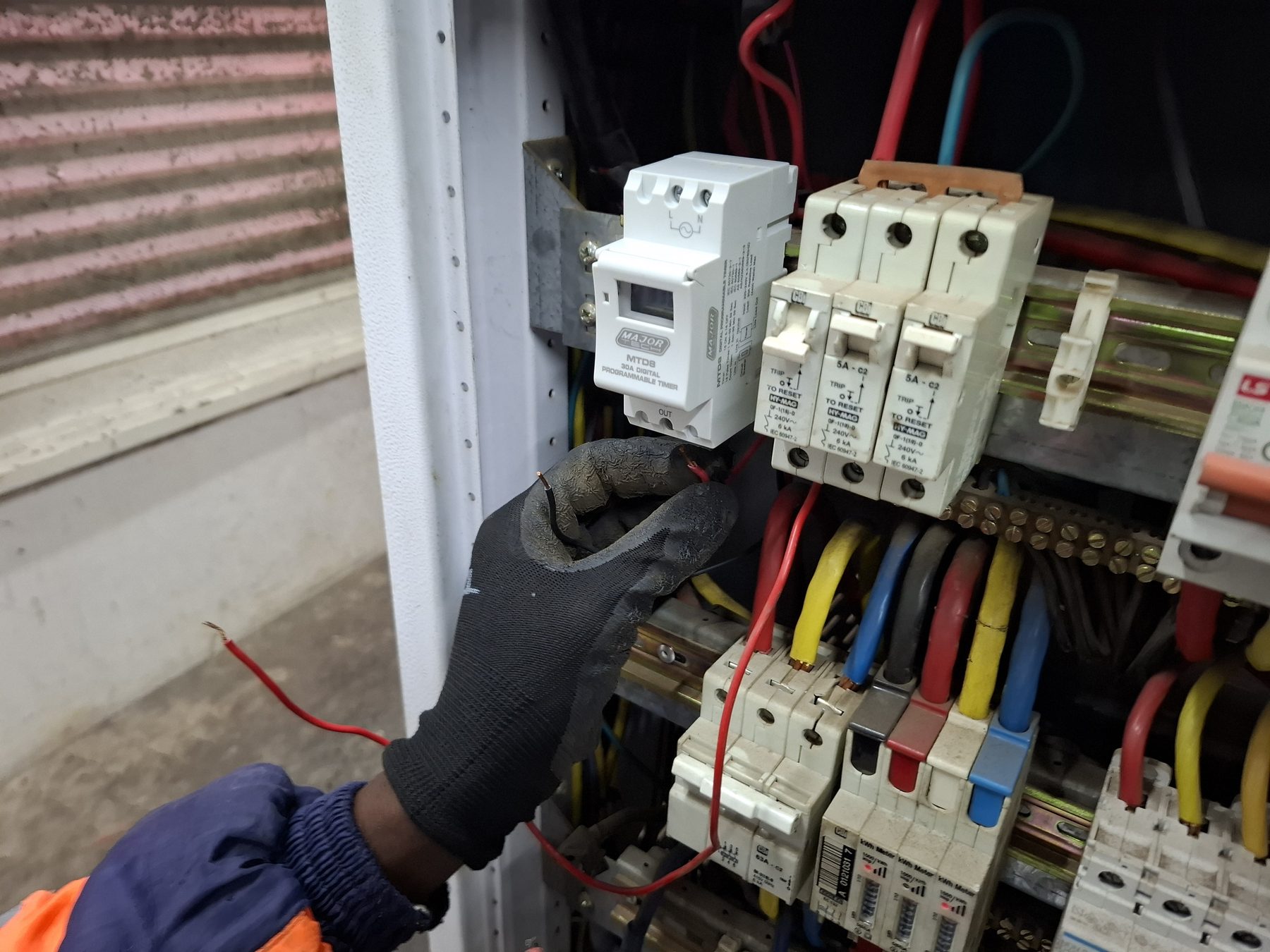

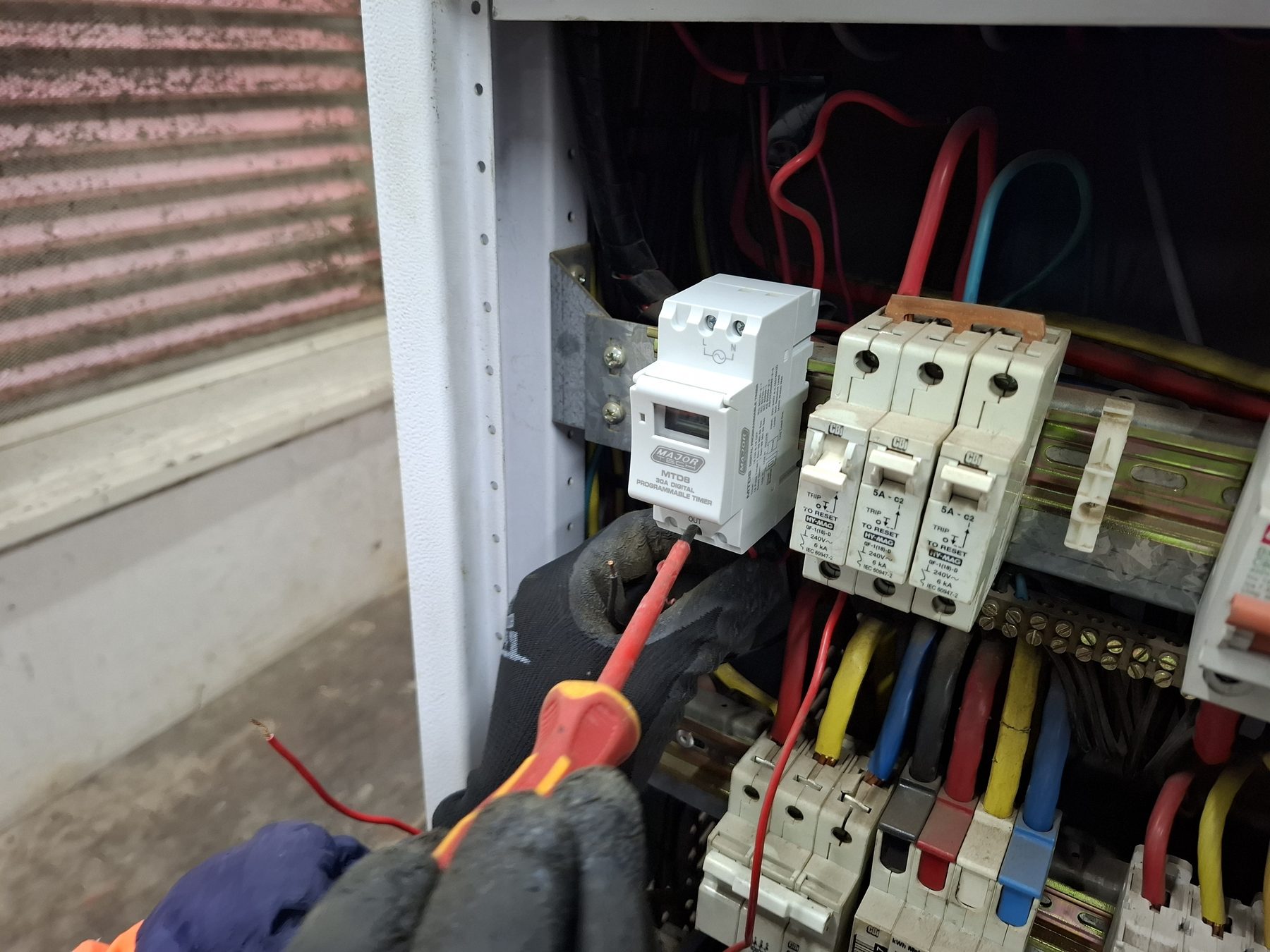

New Major MTDB digital timer installed in DB Timer being wired into the distribution board Technician working inside distribution board Distribution board exterior showing Timer for signs circuit label

Left: the main DB room. Right, clockwise from top: new Major MTDB timer installed; timer being wired in; circuit work inside the board; the “Timer for signs” circuit clearly labelled on the board exterior.


“Our job is to advise clearly, document our recommendation, and then deliver the best possible result within the scope that the client approves.”
Iron Leaf Electric

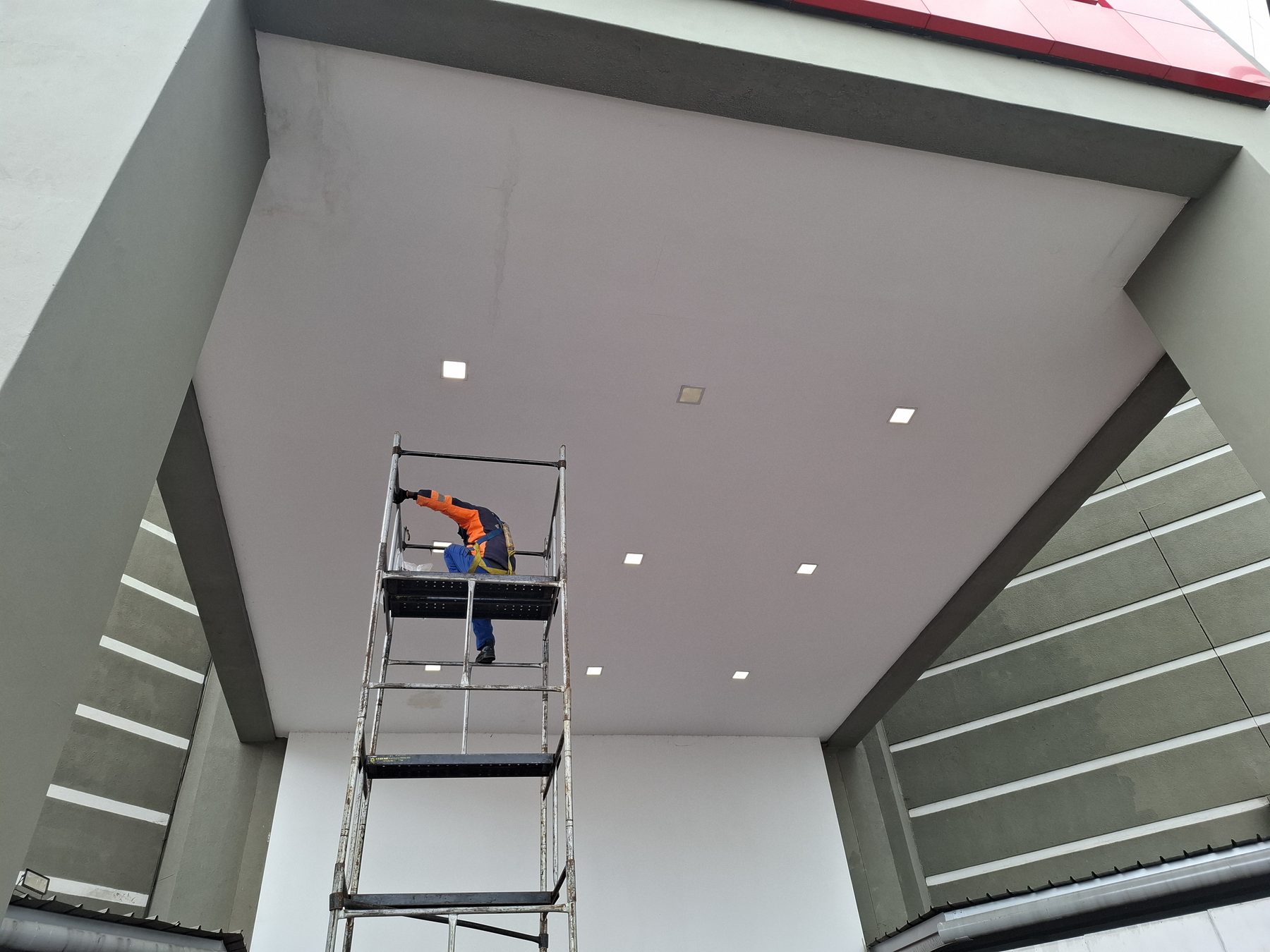

Canopy ceiling showing mix of new and old light fittings

The visible colour difference between new and aged fittings — exactly what we advised the client about.

Replace them all. That was our advice.

When we assessed the canopy, it was clear that the existing fittings had aged significantly. Years of heat and UV exposure had discoloured the diffusers and reduced lumen output across the board. Our recommendation to the client was straightforward: replace all the fittings in the section at the same time.

Reason one — visual consistency. New LED fittings produce noticeably different colour and brightness to old, degraded units. Mixing new and old fittings in the same ceiling section creates an uneven, patchy appearance that is difficult to ignore.

Reason two — cost efficiency. Scaffolding erection is a significant cost on a job like this. Replacing all fittings now avoids repeated mobilisation costs as the remaining old units continue to fail one by one over the coming months.

The client acknowledged the advice and understood the reasoning — but decided to proceed with replacing only the two non-functioning fittings. We respect that entirely. It is their property and their budget. We advised, we documented, and we delivered the best outcome possible within the agreed scope. Equally important, we adhere to our clients' decisions even when our recommendation differs. That professional relationship — honesty paired with respect for the client's final call — is how we operate on every job.


New fittings. Circuit restored.

Both fittings were installed and the colour temperature set to match the surrounding units as closely as possible. With the new timer programmed and the circuit verified from the distribution board, the canopy lighting was returned to full operation. Scaffolding was struck, the site left clean, and the job signed off.

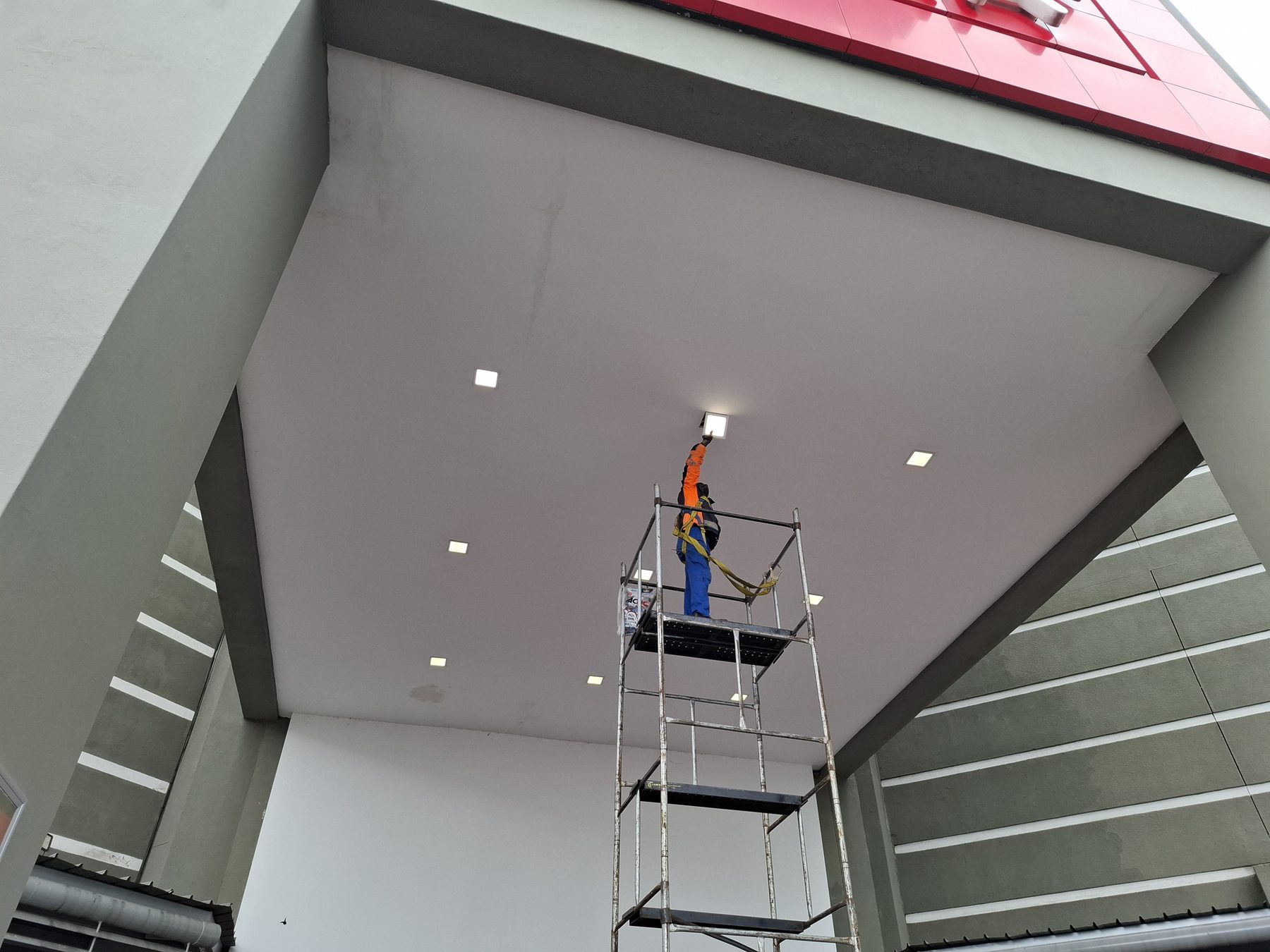

Technician installing the new LED downlight fitting at height

New fitting going in — colour temperature set to match the existing units.

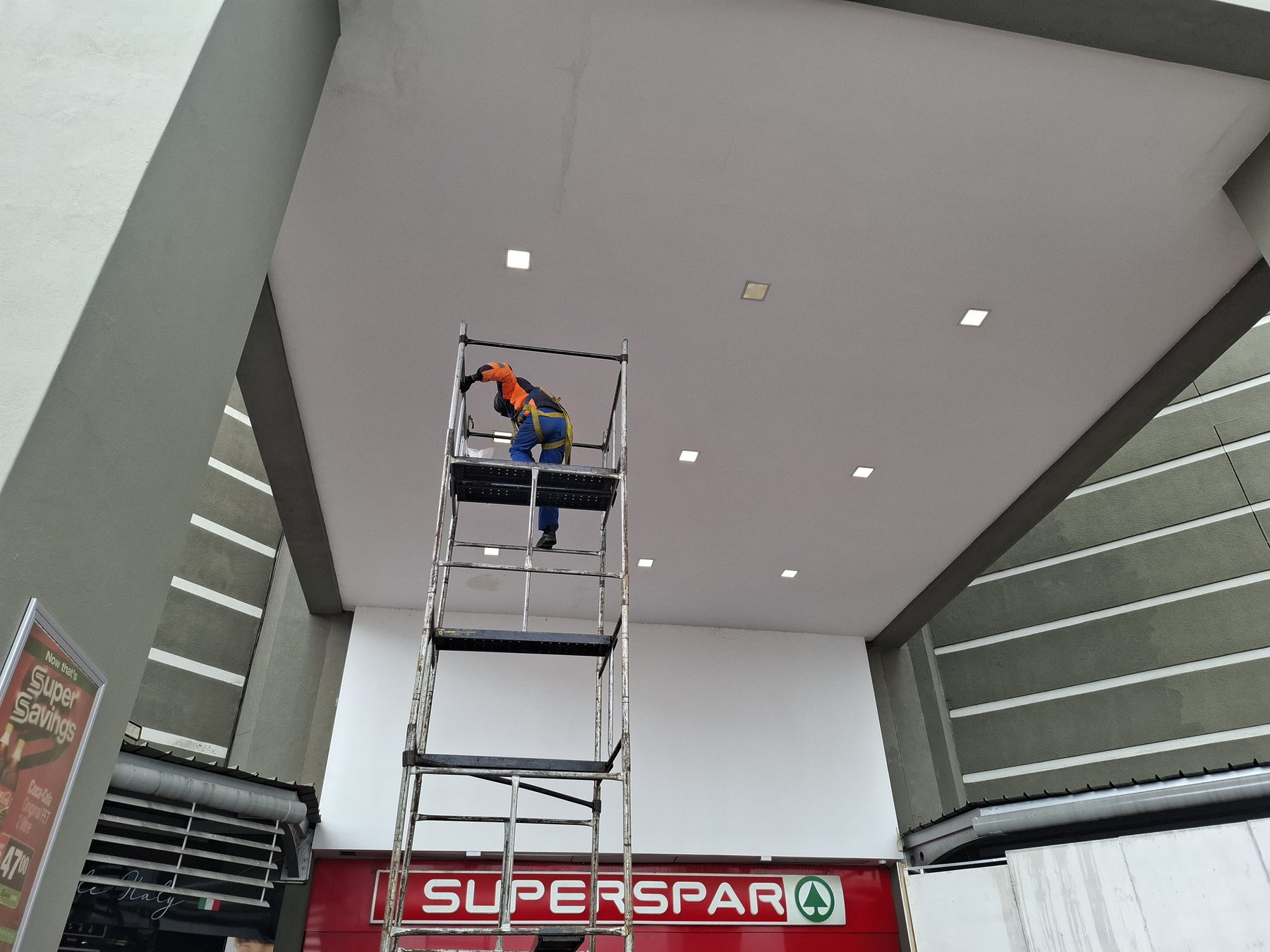

All canopy lights operational after repair

Circuit confirmed live at the DB. Canopy fully operational.
